Medium Voltage Line Cover (code KKG 1-36kV)

Internal Creepage Extender, increase the creepage distance and improves insulating performance

Quickly, simple, special-purpose tools for assembly

Adhesive construction. Making more sealing effect

Hand Tool kits

Simple to install cable accessory kit designed for Overhead Conductor rated to 15kV and 36kV

Live installation
Weather Resistance
Superior UV and Abrasion Resistance
Localized Installation
Range Taking
Quick Installation from 16mm2-800mm2
Standard color : red\yellow\green


If overhead lines get across trees or are close to trees or buildings, it may lead to electrical outages caused by incidental

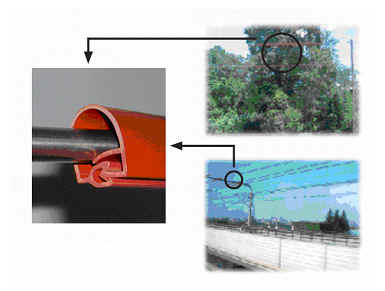

contact from tree branches or wildlife. Medium voltage line cover can provide unique insulating protection solution for those kind of problems. (See picture)

Medium voltage line cover used for railway contact network overhead line system, improve insulating performance and prevent electrical outages caused by incidental contact from tree branches or wildlife.

insulation for overhead conductors to help prevent electrical outages caused by incidental contact from tree branches or wildlife. KKG provides unique insulation protect solution especially for railway overhead conductor.
The KKG sleeve may be applied selectively on problem spans to avoid costly conductor replacement. Installation is possible on energized lines utilizing the KKG tool which attaches directly to the overhead conductor and remains stationary in a single location.
