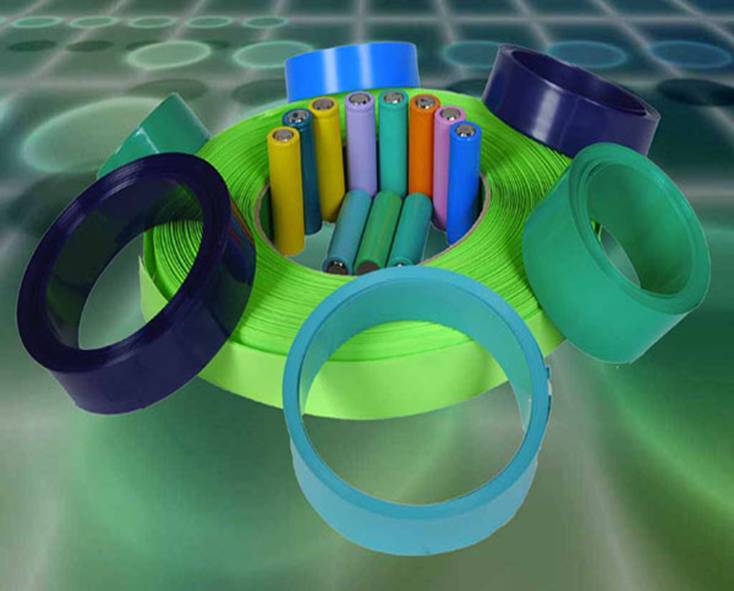

Product Description The product is mainly used in aluminum electrolytic capacitors, batteries, inductors and other electronic components and the encapsulation of light industrial products to protect .Excellent heat resistance and ,insulation and mechanical performance Environmental performance is higher than the eu RoHs directive standards. Meet the requirements of sony-ss-00259 thinkess:0.08mm- 1.5mm |
|
Product Features： Enviroment friendly material.Do not contain cadmium (Cd), lead (Pb), mercury (Hg), hexavalent chromium (CrVI), polybrominated biphenyl (PBBs) and polybrominated diphenyl ether (PBBEs/PBDEs) and polychlorinated biphenyls (PCB) and polychlorinated terphenyls (PCT), polychlorinated biphenyls naphthalene (PCN) and so on level 1 environmental management banned substances. |
|
Performance table |
|||
|
No. |
Item |
Unit |
Performance |
|
1 |
Exterior Appearance |
―― |
No contaminate matter included |
|
2 |
Undissolved Paritcal |
mm2 |
≤0.7 |
|
3 |
（280mm） Camber |
mm |
Under Φ8＜3.0 AboveΦ10＜3.5 |
|
4 |
Density |
G/cm3 |
1.2~1.4 |
|
5 |
Tensile Strength |
Mpa |
m |
|
6 |
Break Elongation at |
% |
＞62 |
|
7 |
Water Absorption |
% |
<2.0% |
|
8 |
Dielectric Strength |
kV/mm |
>15 |
|
9 |
Surface Current Resistance |
Ω .cm |
>109 |
|
10 |
Volume Current Resistance |
Ω.cm |
>1014 |
|
Specification and performance table |
||||
|
|
Flat width (mm) |
Thickness (mm) |
Lateral shrinkable ratio (%) |
Longitudinal shrinkable ratio(%) |
|
φ10 |
17.1±0.3
|
0.07±0.02 |
48±4 |
10±3 |
|
φ13 |
21.7±0.3
|
0.10±0.02 |
48±4 |
10±3 |
|
φ13.5 |
22.5±0.3
|
0.07±0.02 |
48±4 |
10±3 |
|
φ14 |
23.2±0.3
|
0.07±0.02 |
48±4 |
10±3 |
|
φ14.5 |
24.1±0.3
|
0.10±0.02 |
48±4 |
10±3 |
|
φ17 |
28.2±0.3
|
0.10±0.02 |
48±4 |
10±3 |
|
φ17.5 |
29.0±0.3
|
0.10±0.02 |
48±4 |
10±3 |
|
φ18 |
30.2±0.3
|
0.08±0.02 |
48±4 |
10±3 |
|
φ22 |
36.2±0.2
|
0.11±0.02 |
48±4 |
10±3 |
|
φ25.4 |
42.0±0.5
|
0.11±0.02 |
48±4 |
10±3 |
|
φ30 |
49.0±0.5
|
0.11±0.02 |
48±4 |
10±3 |
|
φ35 |
56.7±0.5
|
0.11±0.02 |
48±4 |
10±3 |
